Engines

[ Compiled by: Qwertz9586 & Stocker ] [ First Posted: August 4, 2004 ] [ Last Modified: February 01, 2010 ]

Thank you to everyone who contributed information for this section.

Please wait for all pictures to load before proceeding. If the images do not load, please reload this page.

Sorted by Starting Year. Click the image to enlarge.

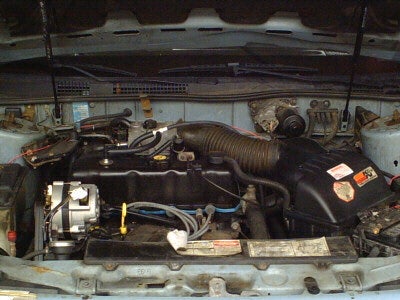

HSC (1986-1991)

VIN Code:	D (More Info)
Displacement:	2.5L (153ci)
Bore:	3.68" (93.5mm)
Stroke:	3.58" (91.0mm)
Engine Type:	Inline 4 Cast Iron Block and Head
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.0:1
Interference:	Unknown
Computer:	EEC-IV / OBD-I
Fuel Injection:	Throttle Body ('86-'90) / Sequential (1991)
Ignition:	Breakerless Distributor
Horsepower*:	88-105 @ 4600 RPM
Torque*:	130 lb.-ft @ 2800 RPM
*Varies by year

Go back to the top of the page

Vulcan (1986-1990)

Some auto part stores incorrectly identify this engine as SOHC
VIN Code:	U (More Info)
Displacement:	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.3:1
Interference:	No
Computer:	EEC-IV / OBD-I
Fuel Injection:	Multi-Point
Ignition:	Breakerless Distributor
Horsepower:	140 @ 4800 RPM
Torque:	160 lb.-ft @ 3000 RPM

Go back to the top of the page

Essex (1988-1989)

VIN Code:	4 (More Info)
Displacement	3.8L (232ci)
Bore:	3.81" (96.8mm)
Stroke:	3.39" (86.0mm)
Engine Type:	90° V6 Cast Iron Block Aluminum Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.0:1
Interference:	No
Computer:	EEC-IV / OBD-I
Fuel Injection:	Multi-Point
Ignition:	Breakerless Distributor
Horsepower:	140 @ 3800 RPM
Torque:	210 lb.-ft @ 2200 RPM

Go back to the top of the page

Yamaha (1989-1995) - Manual Transaxle

VIN Code:	Y (More Info)
Displacement	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Belt*
Compression Ratio:	9.8:1
Interference:	No
Computer:	EEC-IV / OBD-I
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	220 @ 6000 RPM
Torque:	200 lb.-ft @ 4800 RPM
*Belt drives master cam; Chain drives slave cams

Go back to the top of the page

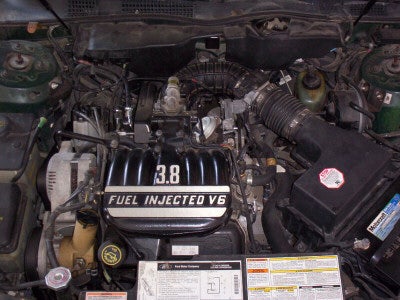

Essex (1990-1995)

VIN Code:	4 (More Info)
Displacement	3.8L (232ci)
Bore:	3.81" (96.8mm)
Stroke:	3.39" (86.0mm)
Engine Type:	90° V6 Cast Iron Block Aluminum Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.0:1
Interference:	No
Computer:	EEC-IV / OBD-I
Fuel Injection:	Sequential Electronic
Ignition:	Breakerless Distributor
Horsepower:	140 @ 3800 RPM
Torque:	215 lb.-ft @ 2400 RPM

Go back to the top of the page

Essex (1990-1995) - Police Version

VIN Code:	4 (More Info)
Displacement	3.8L (232ci)
Bore:	3.81" (96.8mm)
Stroke:	3.39" (86.0mm)
Engine Type:	90° V6 Cast Iron Block Aluminum Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.0:1
Interference:	No
Computer:	EEC-IV / OBD-I
Fuel Injection:	Sequential Electronic
Ignition:	Breakerless Distributor
Horsepower*:	140-160 @ 3800 RPM
Torque:	220 lb.-ft @ 2200 RPM
*Varies by year

Go back to the top of the page

Vulcan (1991-1995)

Some auto part stores incorrectly identify this engine as SOHC
VIN Code:	U, 1, 2 (More Info)
Displacement:	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.3:1
Interference:	No
Computer*:	EEC-IV* / OBD-I*
Fuel Injection:	Sequential Electronic
Ignition:	Breakerless Distributor / Electronic Coil Pack**
Horsepower:	140 @ 4800 RPM
Torque:	160 lb.-ft @ 3000 RPM
About 200 1995 Vulcans received EEC-V and OBD-II. *Only on '93-'95 Flex Fuel models

Go back to the top of the page

Yamaha (1993-1995) - Auto Transaxle

VIN Code:	P (More Info)
Displacement	3.2L (195ci)
Bore:	3.62" (92.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Belt*
Compression Ratio:	9.8:1
Interference:	No
Computer:	EEC-IV / OBD-I
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	220 HP @ 6200 RPM
Torque:	215 lb.-ft @ 4000 RPM
*Belt drives master cam; Chain drives slave cams

Go back to the top of the page

Vulcan (1996-1999)

Some auto part stores incorrectly identify this engine as SOHC
VIN Code:	U, 1, 2 (More Info)
Displacement:	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.3:1
Interference:	No
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	145 @ 5250 RPM
Torque:	170 lb.-ft @ 3250 RPM

Go back to the top of the page

Duratec (1996-1999)

VIN Code:	S (More Info)
Displacement:	3.0L (181ci)
Bore:	3.50" (89.0mm)
Stroke:	3.13" (79.5mm)
Engine Type:	60° V6 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Chain
Compression Ratio:	10.0:1
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	200 @ 5750 RPM
Torque:	200 lb.-ft @ 4500 RPM

Go back to the top of the page

Yamaha (1996-1999)

VIN Code:	N (More Info)
Displacement	3.4L (207ci)
Bore:	3.24" (82.3mm)
Stroke:	3.13" (79.5mm)
Engine Type:	60° V8 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Chain
Compression Ratio:	9.8:1
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil-On-Plug
Horsepower:	235 @ 6100 RPM
Torque:	230 lb.-ft @ 4800 RPM

Go back to the top of the page

Vulcan (2000)

Some auto part stores incorrectly identify this engine as SOHC
VIN Code:	U, 1, 2 (More Info)
Displacement:	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.3:1
Interference:	No
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	153-155* @ 5000 RPM
Torque:	186 lb.-ft @ 3250 RPM
*Varies by source

Go back to the top of the page

Duratec (2000)

VIN Code:	S (More Info)
Displacement:	3.0L (181ci)
Bore:	3.50" (89.0mm)
Stroke:	3.13" (79.5mm)
Engine Type:	60° V6 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Chain
Compression Ratio:	10.0:1
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil-On-Plug
Horsepower:	200 @ 5500 RPM
Torque:	200 lb.-ft @ 4500 RPM

Go back to the top of the page

Vulcan (2001-2003)

Some auto part stores incorrectly identify this engine as SOHC
VIN Code:	U, 1, 2 (More Info)
Displacement:	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.3:1
Interference:	No
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	153-155* @ 5000 RPM
Torque:	186 lb.-ft @ 3250 RPM
*Varies by source

Go back to the top of the page

Duratec (2001-2003)

VIN Code:	S (More Info)
Displacement:	3.0L (181ci)
Bore:	3.50" (89.0mm)
Stroke:	3.13" (79.5mm)
Engine Type:	60° V6 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Chain
Compression Ratio:	10.0:1
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	200 @ 5500 RPM
Torque:	200 lb.-ft @ 4500 RPM

Go back to the top of the page

Vulcan (2004-2007)

Some auto part stores incorrectly identify this engine as SOHC
VIN Code:	U, 1, 2 (More Info)
Displacement:	3.0L (182ci)
Bore:	3.50" (89.0mm)
Stroke:	3.15" (80.0mm)
Engine Type:	60° V6 Cast Iron Block and Heads
Valvetrain:	Pushrod (OHV) 2 Valves per Cylinder Timing Chain
Compression Ratio:	9.5:1
Interference:	No
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil Pack
Horsepower:	153-155* @ 5000 RPM
Torque:	186 lb.-ft @ 3250 RPM
*Varies by source

Go back to the top of the page

Duratec (2004-2005)

VIN Code:	S (More Info)
Displacement:	3.0L (181ci)
Bore:	3.50" (89.0mm)
Stroke:	3.13" (79.5mm)
Engine Type:	60° V6 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder Timing Chain
Compression Ratio:	10.0:1
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil-On-Plug
Horsepower:	201 @ 5500 RPM
Torque:	207 lb.-ft @ 4500 RPM

Go back to the top of the page

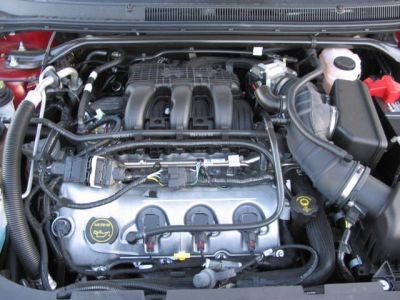

Cyclone (2008+)

VIN Code:	W (More Info)
Displacement:	3.5L (213ci)
Bore:	3.64" (92.5mm)
Stroke:	3.41" (86.7mm)
Engine Type:	60° V6 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder DAMB Tappets
Compression Ratio:	10.3:1
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Sequential Electronic
Ignition:	Electronic Coil-On-Plug
Horsepower:	263 @ 6250 RPM
Torque:	249 lb.-ft @ 4500 RPM

Go back to the top of the page

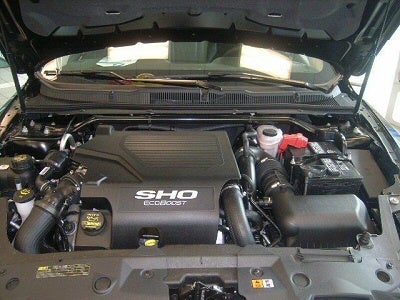

EcoBoost (2010+)

VIN Code:	T (More Info)
Displacement:	3.5L (213ci)
Bore:	3.64" (92.5mm)
Stroke:	3.41" (86.7mm)
Engine Type:	60° V6 Aluminum Block and Heads
Valvetrain:	DOHC 4 Valves per Cylinder DAMB Tappets
Compression Ratio:	10.0:1
Induction:	2 Garrett GT15 turbochargers
Interference:	Yes
Computer:	EEC-V / OBD-II
Fuel Injection:	Direct Electronic
Ignition:	Electronic Coil-On-Plug
Horsepower:	365 @ 5550 RPM
Torque:	350 lb.-ft @ 1500-5250 RPM

Go back to the top of the page
